.net Charting Gallery Sample

Sample: AxisTickAutoRangeTimeLabels

<%@ Page Language="C#" Description="dotnetCHARTING Component" %>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING"%>
<%@ Import Namespace="System.Drawing" %>
<%@ Import Namespace="System.Drawing.Drawing2D" %>
<html xmlns="http://www.w3.org/1999/xhtml">
      <head>
            <title>.netCHARTING Sample</title>
            <script runat="server">

void Page_Load(Object sender,EventArgs e)
{

      Chart.Type = ChartType.Combo;//Horizontal;
      Chart.Width = 700;
      Chart.Height = 350;
      Chart.TempDirectory = "temp";
      Chart.Debug = true;

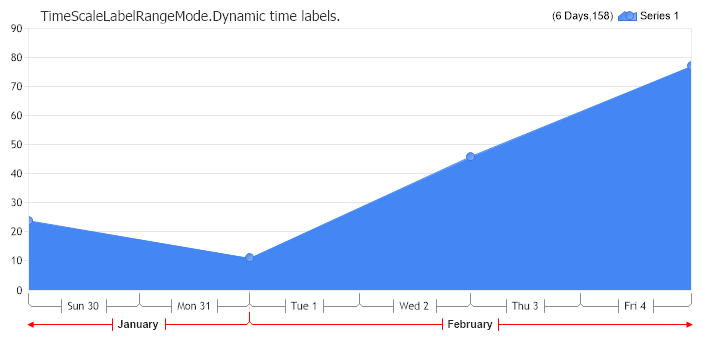

      Chart.Title = "TimeScaleLabelRangeMode.Dynamic time labels.";
      Chart.DefaultSeries.Type=SeriesType.AreaLine;

      // This sample will demonstrate how to use axis time label automation and how to specify different
      // properties for time labels representing different instances in time.

      // Specify the mode.
      Chart.XAxis.TimeScaleLabels.Mode = TimeScaleLabelMode.Hidden;
      Chart.XAxis.TimeScaleLabels.RangeMode = TimeScaleLabelRangeMode.Dynamic;

      // Specify a format string for day labels.
      Chart.XAxis.TimeScaleLabels.DayFormatString = "ddd d";


      // Specify a label template and font for month labels.
      Chart.XAxis.TimeScaleLabels.MonthTick.Label.Font = new Font("Arial",8,FontStyle.Bold);
      Chart.XAxis.TimeScaleLabels.MonthTick.Line.Color = Color.Red;

      // *DYNAMIC DATA NOTE*
      // This sample uses random data to populate the chart. To populate
      // a chart with database data see the following resources:
      // - Classic samples folder
      // - Help File > Data Tutorials
      // - Sample: features/DataEngine.aspx

      // Add the random data.
      Chart.SeriesCollection.Add(getRandomData());

}

SeriesCollection getRandomData()
{
      SeriesCollection SC = new SeriesCollection();
      Random myR = new Random(1);
      DateTime dt = new DateTime(2005,1,28);
      for(int a = 0; a < 1; a++)
      {
            Series s = new Series();
            s.Name = "Series " + (a+1);
            for(int b = 0; b < 4; b++)
            {
                  Element e = new Element();
                  e.YValue = myR.Next(100);
                  e.XDateTime = dt = dt.AddDays(2);
                  s.Elements.Add(e);
            }
            SC.Add(s);
      }
      return SC;
}
            </script>
      </head>
      <body>
            <div style="text-align:center">
                  <dotnet:Chart id="Chart" runat="server" Width="568px" Height="344px">
                  </dotnet:Chart>
            </div>
      </body>
</html>

<%@ Page Language="VB" Debug="true" Description="dotnetCHARTING Component" %>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING"%>
<%@ Import Namespace="System.Drawing" %>
<%@ Import Namespace="System.Drawing.Drawing2D" %>
<html xmlns="http://www.w3.org/1999/xhtml">
      <head>
            <title>.netCHARTING Sample</title>
            <script runat="server">
Sub Page_Load(sender As [Object], e As EventArgs)

Chart.Type = ChartType.Combo
Chart.Width = Unit.Parse(700)
Chart.Height = Unit.Parse(350)
Chart.TempDirectory = "temp"
Chart.Debug = True
Chart.DefaultSeries.Type=SeriesType.AreaLine
Chart.Title = "TimeScaleLabelRangeMode.Dynamic time labels."

' This sample will demonstrate how to use axis time label automation and how to specify different
' properties for time labels representing different instances in time.
' Specify the mode.
Chart.XAxis.TimeScaleLabels.Mode = TimeScaleLabelMode.Hidden
Chart.XAxis.TimeScaleLabels.RangeMode = TimeScaleLabelRangeMode.Dynamic

' Specify a format string for day labels.
Chart.XAxis.TimeScaleLabels.DayFormatString = "ddd d"

' Specify a label template and font for month labels.
Chart.XAxis.TimeScaleLabels.MonthTick.Label.Font = New Font("Arial", 8, FontStyle.Bold)
Chart.XAxis.TimeScaleLabels.MonthTick.Line.Color = Color.Red

' *DYNAMIC DATA NOTE*
' This sample uses random data to populate the chart. To populate
' a chart with database data see the following resources:
' - Classic samples folder
' - Help File > Data Tutorials
' - Sample: features/DataEngine.aspx
' Add the random data.
Chart.SeriesCollection.Add(getRandomData())
End Sub 'Page_Load

Function getRandomData() As SeriesCollection
Dim SC As New SeriesCollection()
Dim myR As New Random(1)
Dim dt As New DateTime(2005, 1, 28)
Dim a As Integer
For a = 0 To 0
       Dim s As New Series()
       s.Name = "Series " +Convert.ToString(a + 1)
       Dim b As Integer
       For b = 0 To 3
       Dim e As New Element()
       e.YValue = myR.Next(100)
       e.XDateTime =dt.AddDays(2)
       dt = dt.AddDays(2)
       s.Elements.Add(e)
       Next b
       SC.Add(s)
Next a
Return SC
End Function 'getRandomData
</script>
      </head>
      <body>
            <div style="text-align:center">
                  <dotnet:Chart id="Chart" runat="server" Width="568px" Height="344px">
                  </dotnet:Chart>
            </div>
      </body>
</html>
