Sample: ElementSubValueStyling

<%@ Page Language="C#" Description="dotnetCHARTING Component" %>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING"%>
<%@ Import Namespace="System.Drawing" %>
<%@ Import Namespace="System.Drawing.Drawing2D" %>
<html xmlns="http://www.w3.org/1999/xhtml">
      <head>
            <title>.netCHARTING Sample</title>
            <script runat="server">

void Page_Load(Object sender,EventArgs e)
{

      Chart.Type = ChartType.Combo;//Horizontal;
      Chart.Width = 600;
      Chart.Height = 350;
      Chart.TempDirectory = "temp";
      Chart.Debug = true;

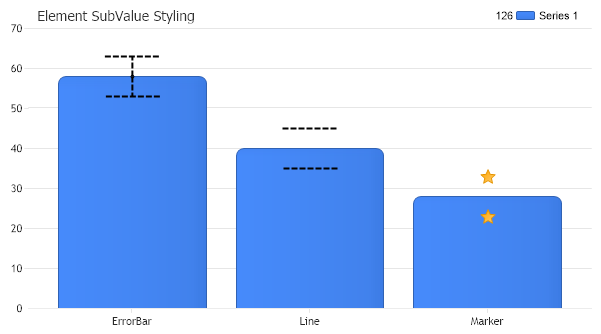

      Chart.Title = "Element SubValue Styling";

      // This sample will demonstrate how to style element sub values such as error bars.

      // Set a default error offset value.
      Chart.DefaultElement.ErrorOffset = 5;

      // Default Line Styling
      Chart.DefaultElement.DefaultSubValue.Line.DashStyle = DashStyle.Dash;
      Chart.DefaultElement.DefaultSubValue.Line.Length = 55;
      Chart.DefaultElement.DefaultSubValue.Line.Width = 2;
      Chart.DefaultElement.DefaultSubValue.Line.Color = Color.Black;

      // Default Marker Styling
      Chart.DefaultElement.DefaultSubValue.Marker.Type = ElementMarkerType.FivePointStar;
      Chart.DefaultElement.DefaultSubValue.Marker.Size = 12;
      Chart.DefaultElement.DefaultSubValue.Marker.Color = Color.Orange;

      // *DYNAMIC DATA NOTE*
      // This sample uses random data to populate the chart. To populate
      // a chart with database data see the following resources:
      // - Classic samples folder
      // - Help File > Data Tutorials
      // - Sample: features/DataEngine.aspx
      SeriesCollection mySC = getRandomData();
      // Add the random data.
      Chart.SeriesCollection.Add(mySC);

      // Specify SubValue Types
      mySC[0].Elements[0].DefaultSubValue.Type = SubValueType.ErrorBar;
      mySC[0].Elements[1].DefaultSubValue.Type = SubValueType.Line;
      mySC[0].Elements[2].DefaultSubValue.Type = SubValueType.Marker;

      // Name the elements
      mySC[0].Elements[0].Name = "ErrorBar";
      mySC[0].Elements[1].Name = "Line";
      mySC[0].Elements[2].Name = "Marker";

}

SeriesCollection getRandomData()
{
      SeriesCollection SC = new SeriesCollection();
      Random myR = new Random(2);
      for(int a = 0; a < 1; a++)
      {
            Series s = new Series();
            s.Name = "Series " + (a+1);
            for(int b = 0; b < 3; b++)
            {
                  Element e = new Element();
                  e.Name = "Element " + (b+1);
                  //e.YValue = -25 + myR.Next(50);
                  e.YValue = 20+ myR.Next(50);
                  s.Elements.Add(e);
            }
            SC.Add(s);
      }

      // Set Different Colors for our Series

      return SC;
}
            </script>
      </head>
      <body>
            <div style="text-align:center">
                  <dotnet:Chart id="Chart" runat="server" Width="568px" Height="344px">
                  </dotnet:Chart>
            </div>
      </body>
</html>

<%@ Page Language="VB" Description="dotnetCHARTING Component" %>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING"%>
<%@ Import Namespace="System.Drawing" %>
<%@ Import Namespace="System.Drawing.Drawing2D" %>
<html xmlns="http://www.w3.org/1999/xhtml">
      <head>
            <title>.netCHARTING Sample</title>
            <script runat="server">

Sub Page_Load(sender As [Object], e As EventArgs)

Chart.Type = ChartType.Combo
Chart.Width = Unit.Parse(600)
Chart.Height = Unit.Parse(350)
Chart.TempDirectory = "temp"
Chart.Debug = True
Chart.Title = "Element SubValue Styling"

' This sample will demonstrate how to style element sub values such as error bars.
' Set a default error offset value.
Chart.DefaultElement.ErrorOffset = 5

' Default Line Styling
Chart.DefaultElement.DefaultSubValue.Line.DashStyle = DashStyle.Dash
Chart.DefaultElement.DefaultSubValue.Line.Length = 55
Chart.DefaultElement.DefaultSubValue.Line.Width = 2
Chart.DefaultElement.DefaultSubValue.Line.Color = Color.Black

' Default Marker Styling
Chart.DefaultElement.DefaultSubValue.Marker.Type = ElementMarkerType.FivePointStar
Chart.DefaultElement.DefaultSubValue.Marker.Size = 12
Chart.DefaultElement.DefaultSubValue.Marker.Color = Color.Orange

' *DYNAMIC DATA NOTE*
' This sample uses random data to populate the chart. To populate
' a chart with database data see the following resources:
' - Classic samples folder
' - Help File > Data Tutorials
' - Sample: features/DataEngine.aspx
Dim mySC As SeriesCollection = getRandomData()
' Add the random data.
Chart.SeriesCollection.Add(mySC)

' Specify SubValue Types
mySC(0).Elements(0).DefaultSubValue.Type = SubValueType.ErrorBar
mySC(0).Elements(1).DefaultSubValue.Type = SubValueType.Line
mySC(0).Elements(2).DefaultSubValue.Type = SubValueType.Marker

' Name the elements
mySC(0).Elements(0).Name = "ErrorBar"
mySC(0).Elements(1).Name = "Line"
mySC(0).Elements(2).Name = "Marker"
End Sub 'Page_Load

Function getRandomData() As SeriesCollection
Dim SC As New SeriesCollection()
Dim myR As New Random(2)
Dim a As Integer
For a = 0 To 0
       Dim s As New Series()
       s.Name = "Series " +Convert.ToString(a + 1)
       Dim b As Integer
       For b = 0 To 2
       Dim e As New Element()
       e.Name = "Element " +Convert.ToString(b + 1)
       'e.YValue = -25 + myR.Next(50);
       e.YValue = 20 + myR.Next(50)
       s.Elements.Add(e)
       Next b
       SC.Add(s)
Next a

' Set Different Colors for our Series
Return SC
End Function 'getRandomData

</script>
      </head>
      <body>
            <div style="text-align:center">
                  <dotnet:Chart id="Chart" runat="server" Width="568px" Height="344px">
                  </dotnet:Chart>
            </div>
      </body>
</html>
